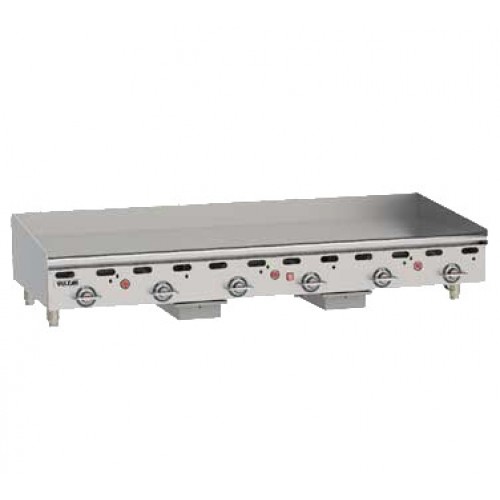

Heavy Duty Griddle, countertop, gas, 72" W x 30" D cooking surface, 1" thick polished steel griddle plate, embedded mechanical snap action thermostat every 12", millivolt pilot safety, electric spark or manual ignition, front manifold gas shut-off valve, low profile, stainless steel front, sides, front grease trough, 4" back & tapered side splashes, 4" adjustable legs, 162,000 BTU, CSA, NSF.
STANDARD FEATURES
• Stainless steel front, sides and front top ledge with “Cool Bullnose” design
• Fully welded stainless and aluminized steel chassis frame
• 11" low profile cooking height on 4" adjustable legs
• 1" thick polished steel griddle plate with 12 gauge, 4" stainless steel back and tapered side splashes
• Spatula wide 31⁄2" grease gutter and chute is fully welded for easier cleaning and to stop grease migration
• One 27,000 BTU/hr. “U” shaped aluminized steel burner for every 12" of griddle width
• One embedded snap action thermostat per burner with temperature adjust from 200°F to 550°F
• Large 6 quart stainless steel grease drawer (2 drawers on 60" and 72" models)
• Heavy duty chromed thermostat knob guards
• One pilot safety valve for every two burners; safety will completely shut off gas to pilot and burners if pilot extinguishes
• Manual shut-off valve for gas inlet
• Dual (manual/electric) ignition
• Bottom heat shields
• 3/4" rear gas connection and gas pressure regulator
• 120V 50/60Hz 1 Amp single phase with NEMA 5-15 USA plug
• One year limited parts and labor warranty
OPTIONS
❑ Chrome plate (w/palmetto brush, scraper & blade)
❑ 30" Depth Steel Plate
❑ Rear grease trough
❑ Under-device plumbing
❑ 10" Back splash
❑ Factory installed frame for clamshell accessory
PRISON PACKAGE-Sealed Chasis, loackable panel and grease can, security screws
